Description
For details, check The supported protocols section. Depending on which protocol, the retrieved data might be less or more. For the sake of users, it reads diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- ELM327 Will work with 12 V gasoline and diesel vehicles . Not support 24 v diesel /trucks.
- it supports ALL OBDII protocols, widest coverages. See supported brands and models in the Supported Vehicles section.
- No wires or batteries (adapter is powered by the 12V Vehicles battery).
- 30 Minutes without communication, it will automatically go to sleep mode.
- Ultra low cumsumption in sleep-mode, less than 10MA.
- The adapter uses the fast communication mode and most reliable PIC18F25K80 chips, up to 30PID/S.
- True ON-OFF button, you can press button to turn off the elm if not in use.
Specs
Chipsets
Features
1. Read diagnostic trouble codes, both generic and manufacturer specific
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
Supported ODB protocol
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. SAE J1939 CAN(29bit ID,250*Kbaud)
4.ISO9141-2(5 baud init,10.4Kbaud)
5.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
6.ISO14230-4 KWP(fast init,10.4 Kbaud)
7.ISO15765-4 CAN(11bit ID,500 Kbaud)
8.ISO15765-4 CAN(29bit ID,500 Kbaud)
9.ISO15765-4 CAN(11bit ID,250 Kbaud)
10.ISO15765-4 CAN(29bit ID,250 Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
(*): default settings (user adjustable). See https://www.konnwei.com/product/447.html.
NB: The red highlights are not supported in ELM327 V2.1 but V1.5.
Supported cars (brands and models)
Notice : No ELM327 can work for all cars , most of the following car will fit . If the device does not fit for your car , please try to test on another car.
Notice : No ELM327 can work for all cars , most of the following car will fit . If the device does not fit for your car , please try to test on another car.
KW902 ELM 327 OBD2 Scanner Work as ICAR2 Adapter OBDII Diagnostic Tool
1. America Car List: (include Brazil)
Need standard OBD2 , and release from 2000 years to now. Including
- Chrysler, Ford, GM, Jeep
2. Europe Car List:
Need standard OBD2 , and release from 2003 years to now. Including
- Alfa Romeo, SAAB , Acura , Opel, Audi, Seat , Peugeot, Renault
- Bentley, Skoda, Daewoo, Benz, Daihatsu , Land Rover
- BMW, Vauxhall, Citroen, Volvo, Fiat, VW, Ford, Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard OBD2 , and release from 2006 years to now. Including:
- KIA ,Isuzu, Honda, Mitsubishi, Hyundai , Dacia , Lexus, Mazda
- Nissan , Subaru, Suzuki, Toyota
Chinese car Need standard OBD2, and release from 2011 years to now. Including
- BYD, Chery, Geely, Great Wall, Karry
4. Russia Car List:
For Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.
For Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,
For Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.
For LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.
For LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.
ODB port
Mobile Apps
⭐️ Car Scanner ELM OBD2
- iOS: https://apps.apple.com/no/app/car-scanner-elm-obd2/id1259933623
- Android: https://play.google.com/store/apps/details?id=com.ovz.carscanner
⭐️ Torque Lite (OBD2 & Car)
- iOS:
- Android: https://play.google.com/store/apps/details?id=org.prowl.torquefree&hl=en&gl=US
PC Apps
⭐️ ScanMaster - ELM
BLE connection notes
1. Clear your BT connection history, find the Konnwei device , and connect it
Password/Pari code is : 1234 or 0000
2. Open the software , and set it as the picture steps :
3. Click these two places of the picture, and wait for 30 seconds , it will connect successful .

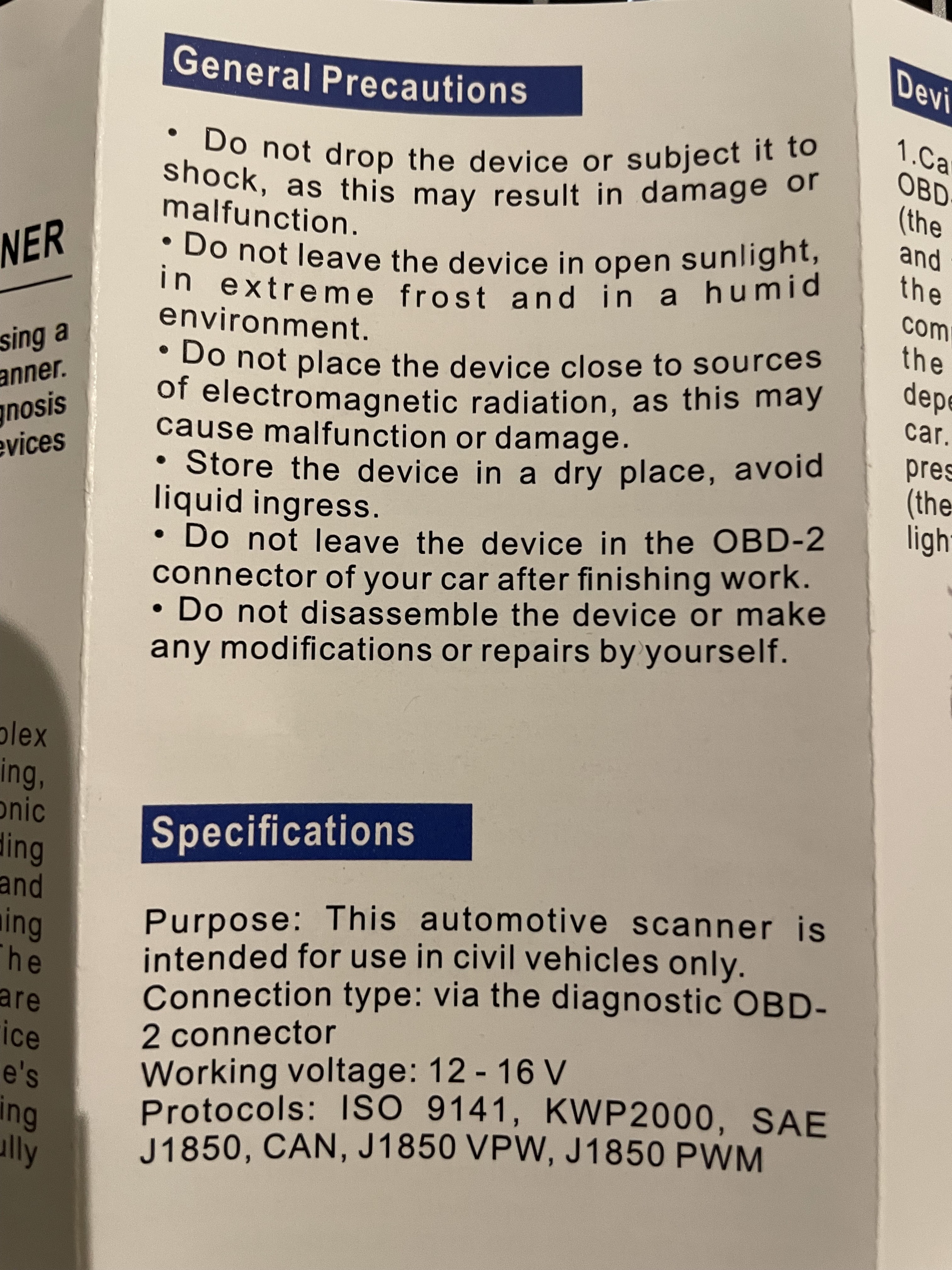

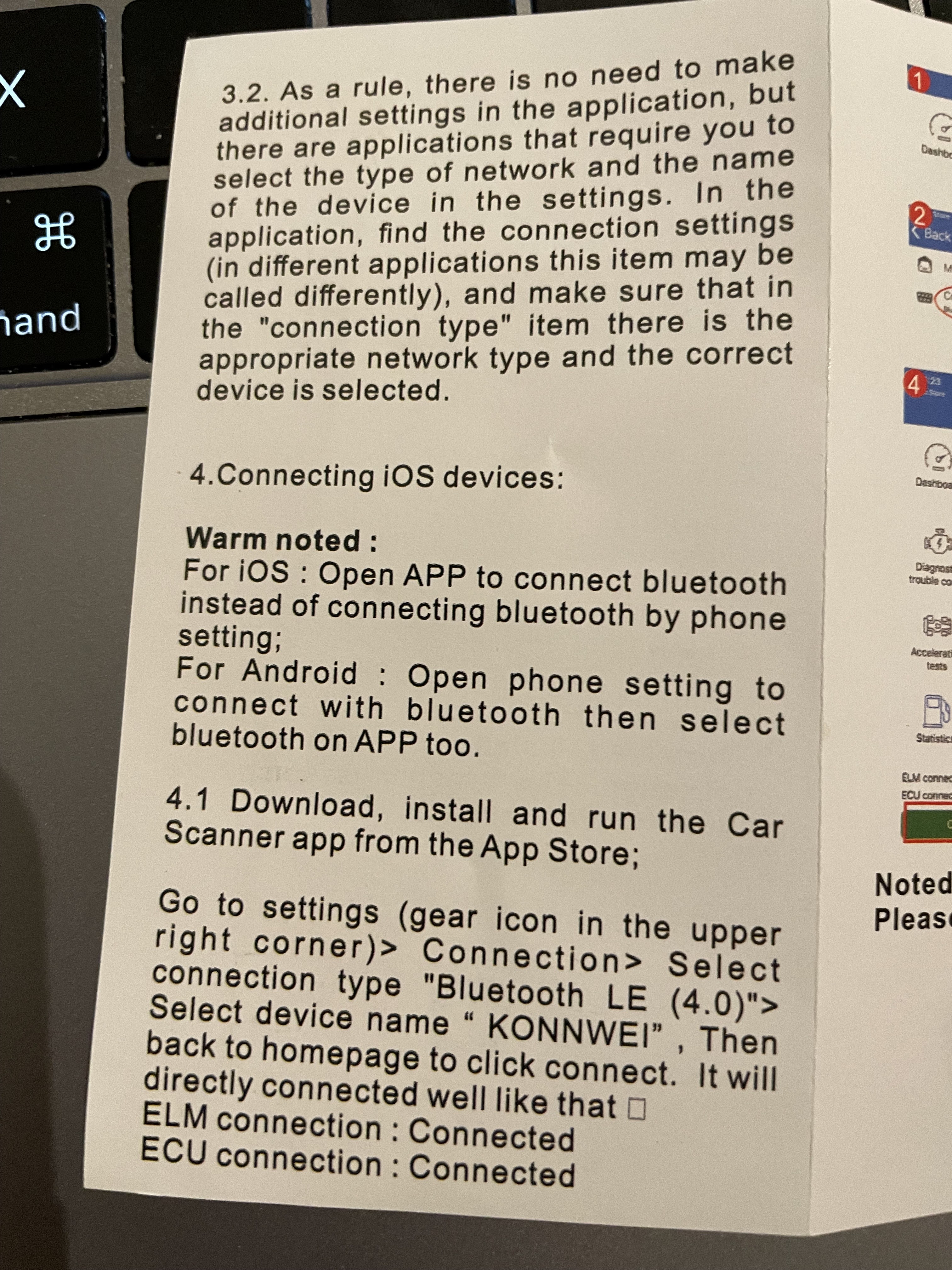

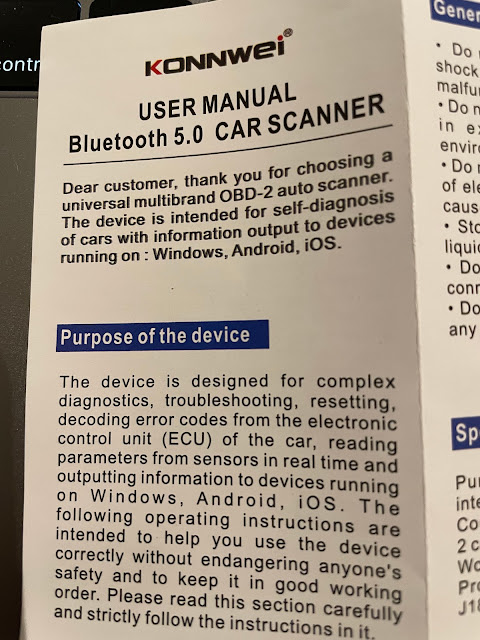

User manual (8 pages)
